P0060.1

Tank pressure evolution

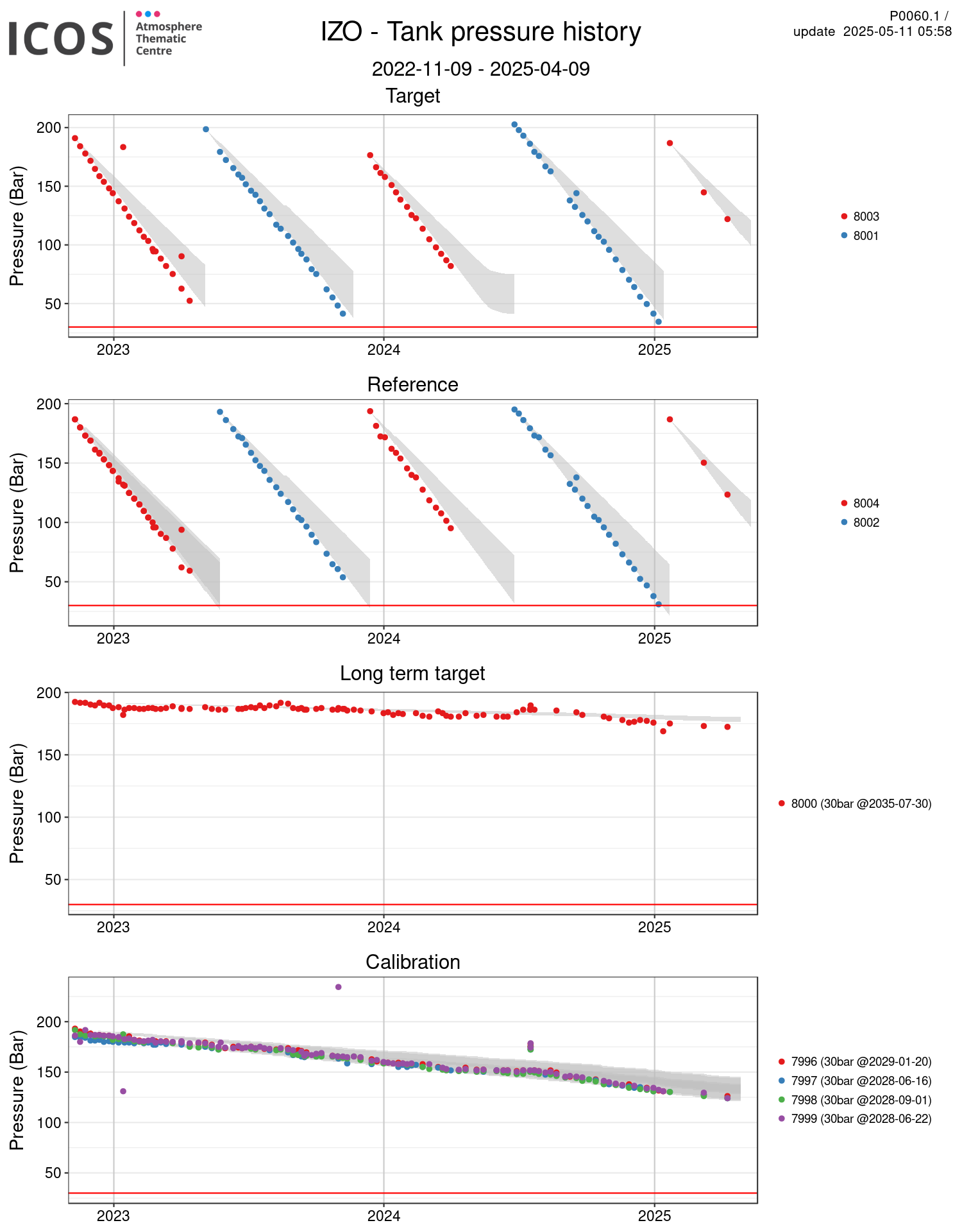

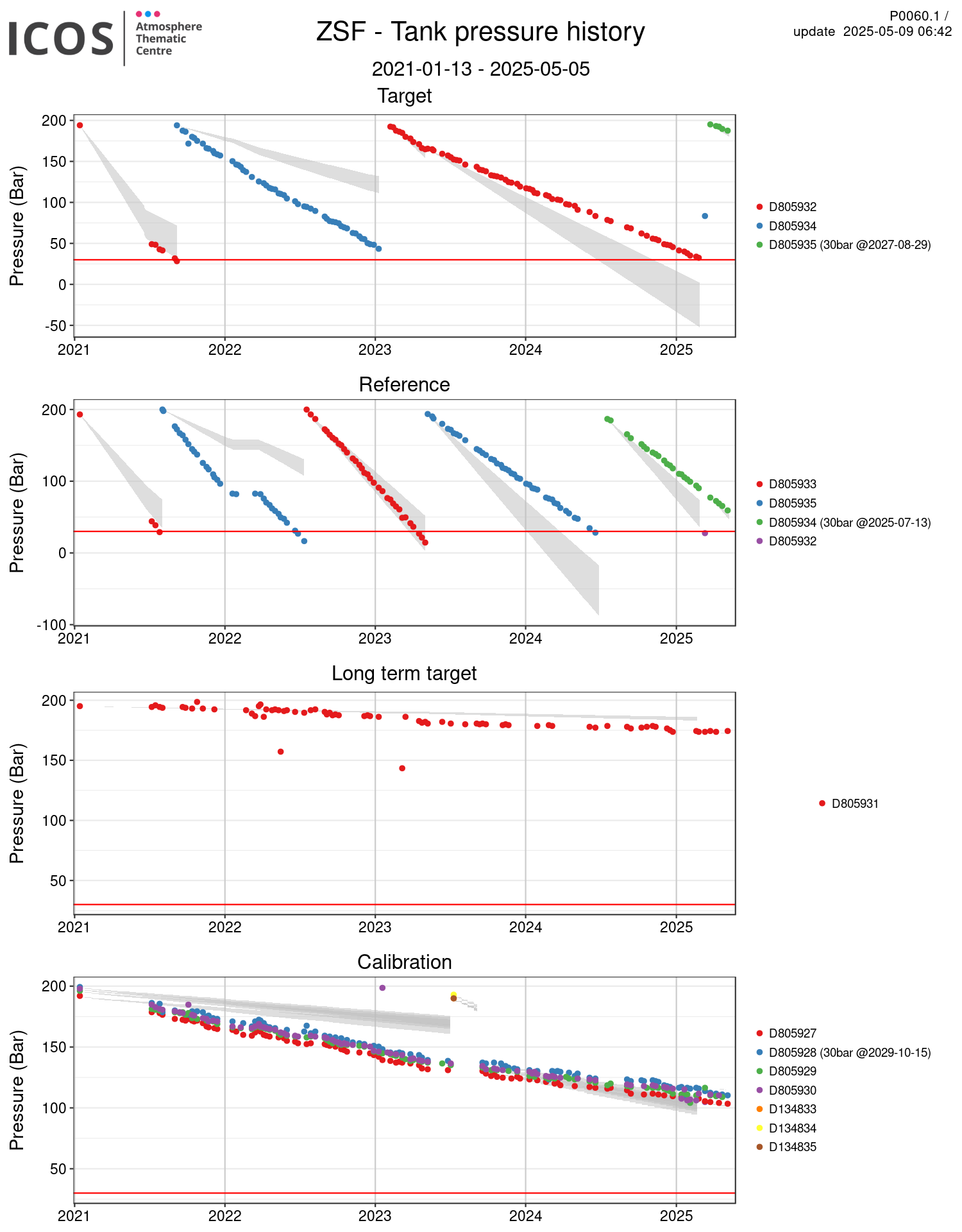

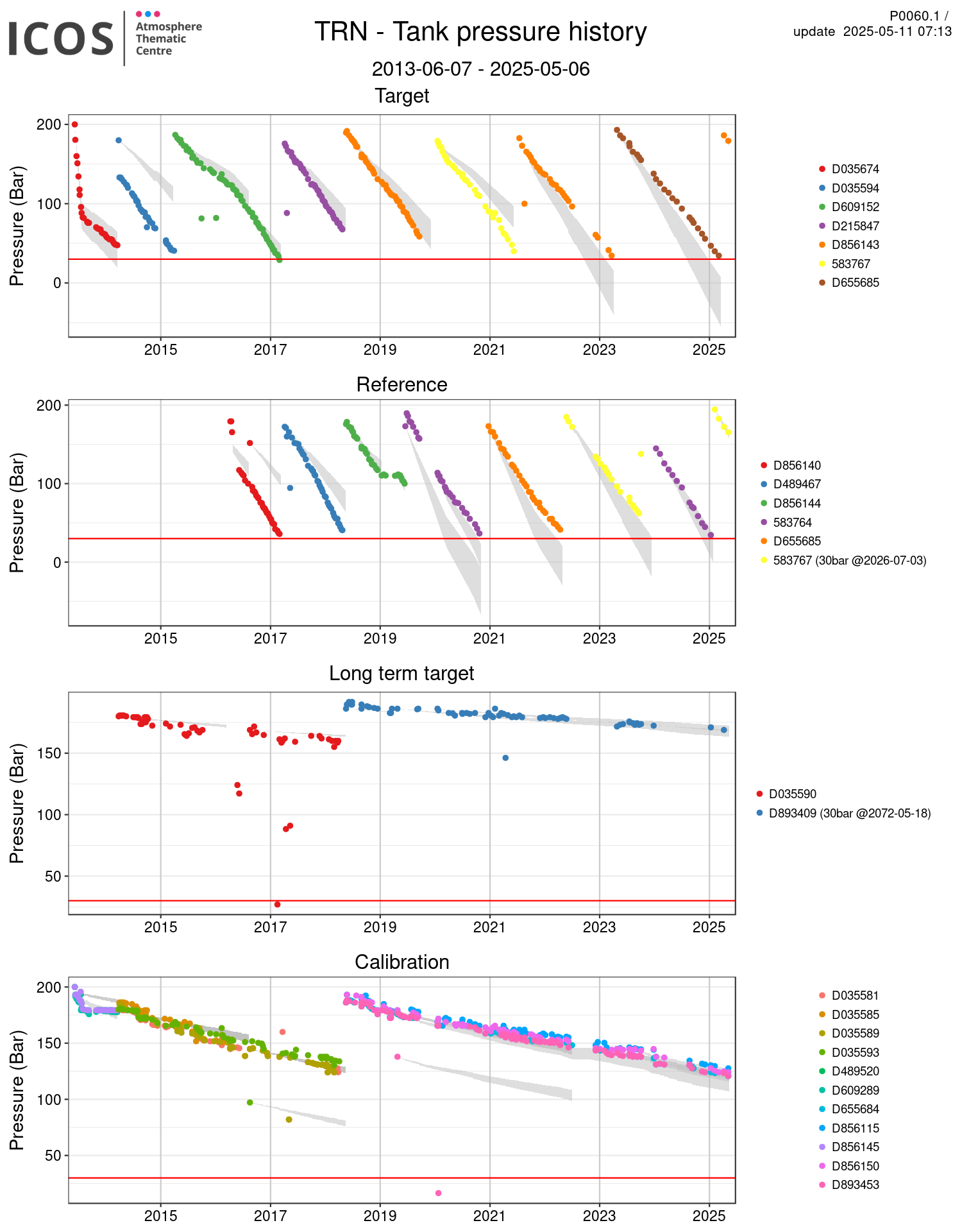

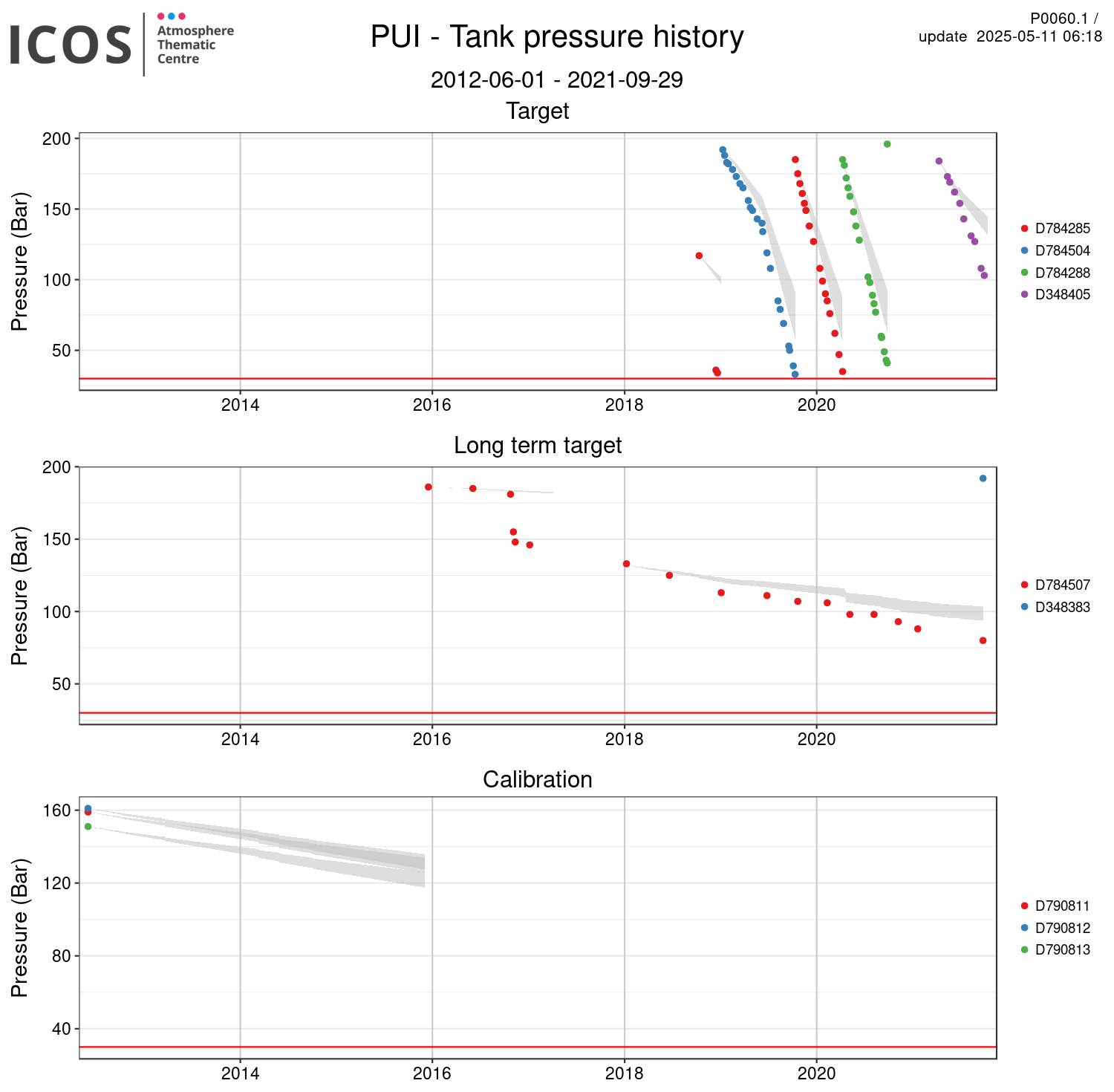

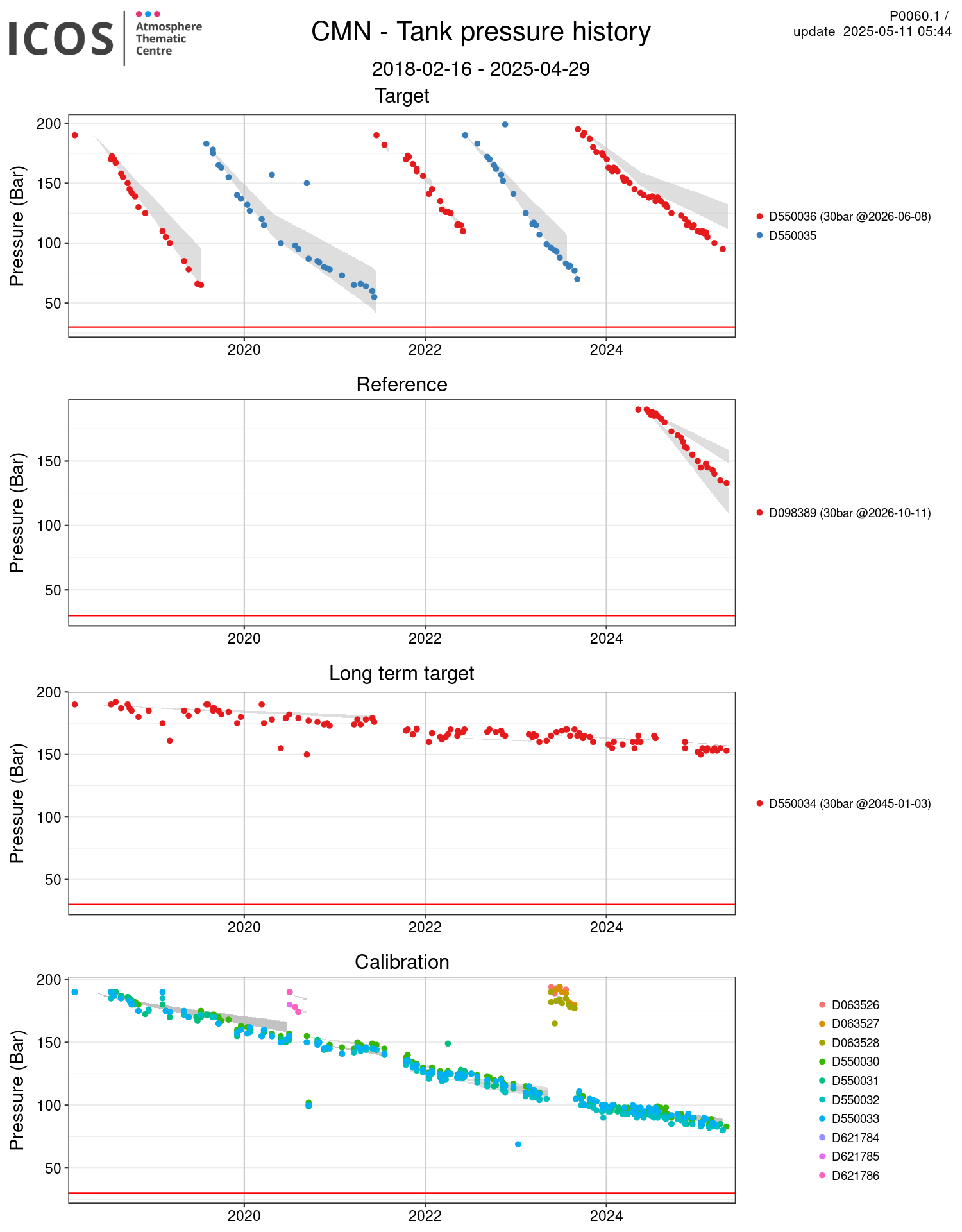

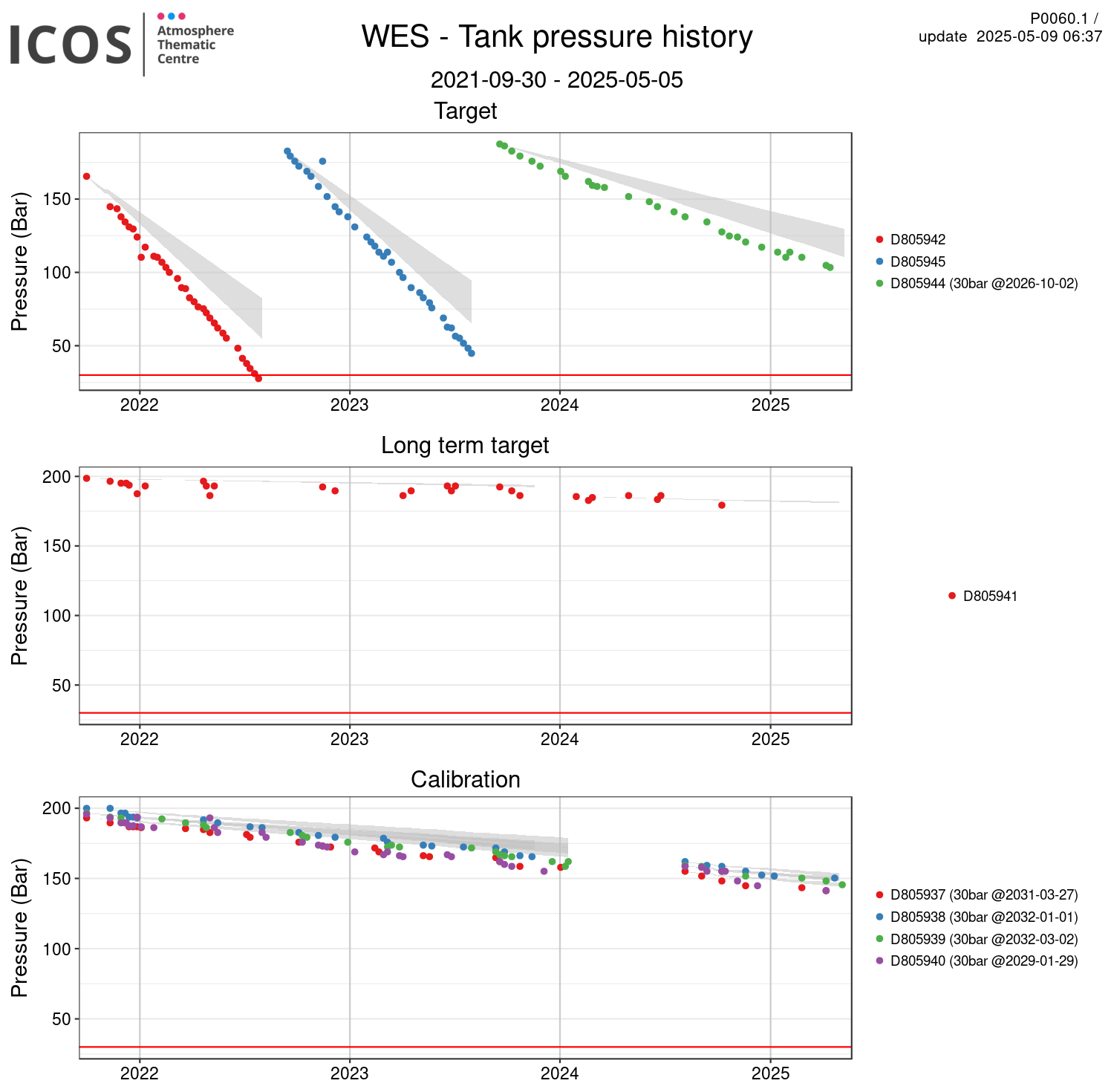

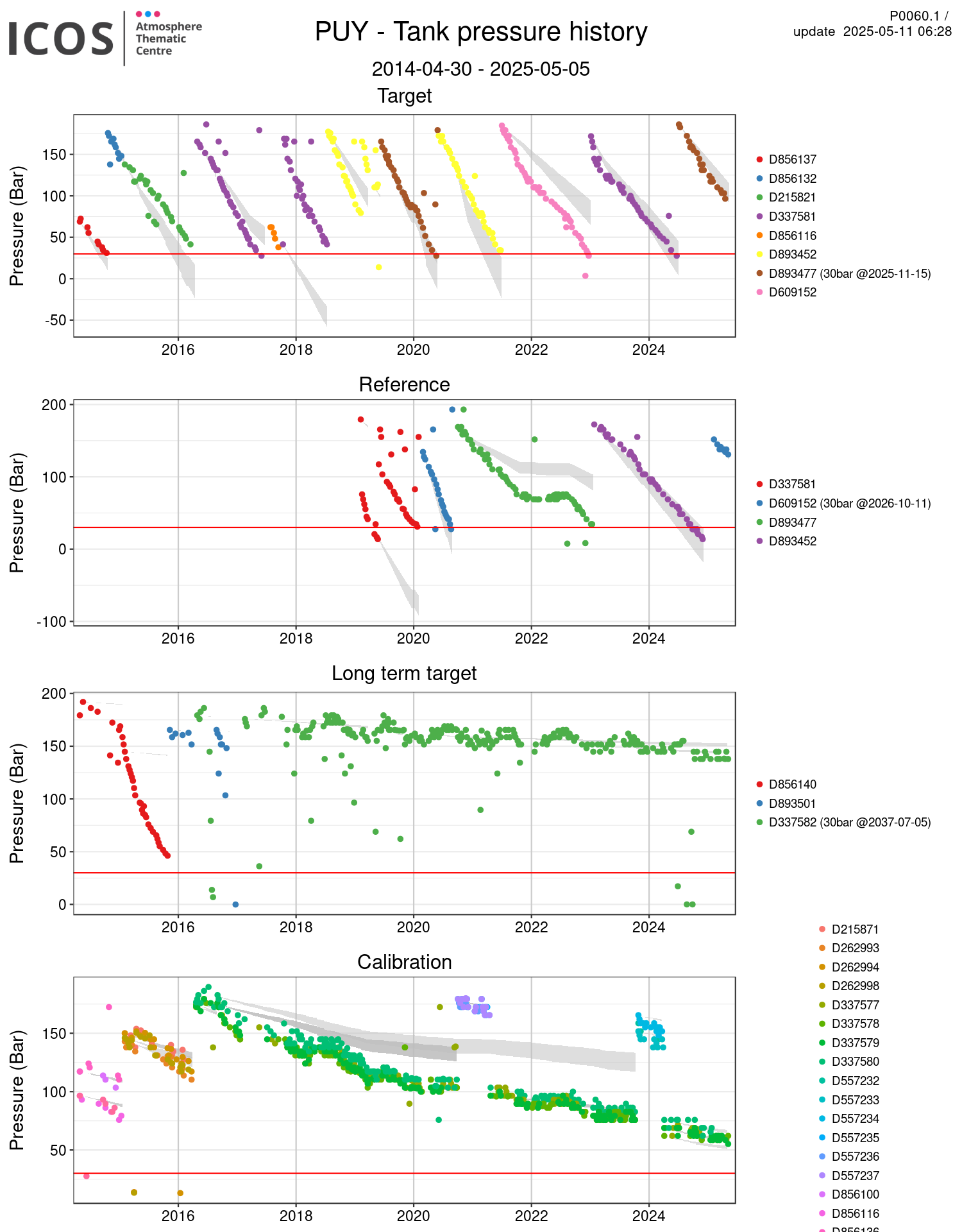

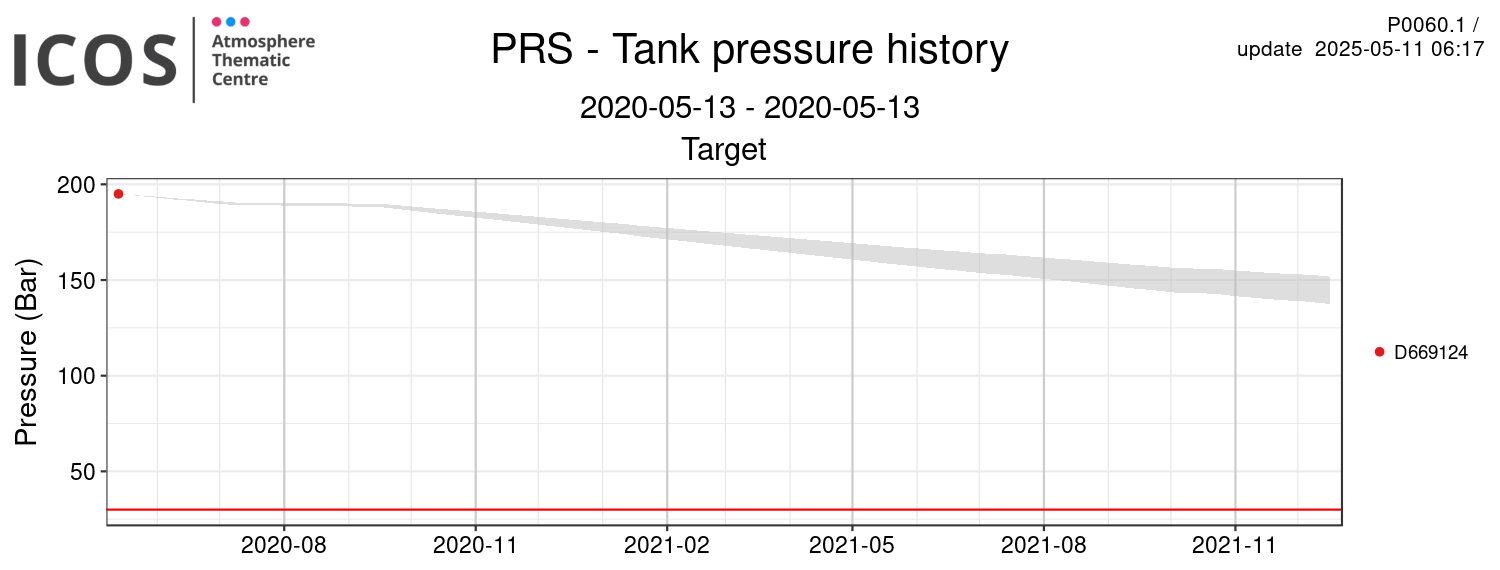

P0060.1 product shows the timeseries of site's tanks pressure. There is one plot box by tanks' type (Target short term, calibration, etc.). Each tank has its own color. Theoretical pressure drop, based on a gas flow between 150 and 200 mL/min (grey ribbon) or measured flow (black line, if available) is also displayed in order to be able to compare real pressure drop to expected pressure drop.
